EFC Design 1041 (Moore S.B. type): Notes & Illustrations

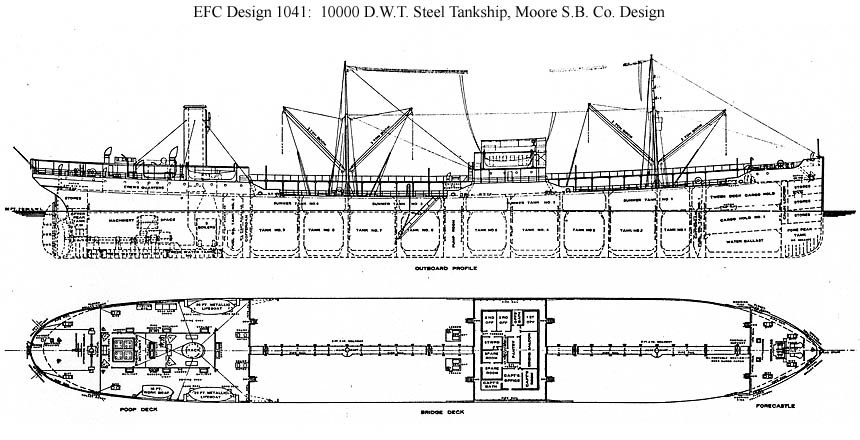

Click here for a larger and more complete copy of this plan: Sheet 1.
Click on the photographs below to prompt larger views of the same images.
|
Notes: Up to 1915 the Moore & Scott Iron Works was a repair yard in Oakland, Calif., with one slipway capable of carrying a vessel of 2000 tons. In that year it began expanding in response to orders from Europe and from American operators. One American order received in 1916 from the Pan-American Petroleum & Trading Co. was for a single tanker, Frederick R. Kellogg (Yard no. 111), with specifications almost exactly matching those of the later EFC Design 1041 for which it probably became the model. In 1917 Moore bought out Scott and changed the yard's name to Moore Shipbuilding. On 20 July 1917 the yard received an order for 10 freighters to a design that it had already been using for foreign orders (EFC Design 1015, EFC Hulls 143-152), and on 31 December 1917 Moore received orders for 10 more of these cargo ships (EFC Hulls 1015-1024) and the first six Design 1041 tankers (EFC Hulls 1025-1030). For each of these orders Moore expanded its yard and added building ways, resulting in ten slips by November 1918 (3 in a central yard, 4 in an east yard, and 3 in a west yard). The last three ways added were to be 600' in length and able to accommodate "transports" (the yard probably intended to compete for Design 1029 ships) and then oil tankers. These ways were approaching completion in June 1918. A further tanker order for 6 ships (EFC Hulls 2227-2232 accompanied by ten cargo ships (EFC Hulls 2233-2242) was awarded to Moore on 5 July 1918. The last three of these tankers were cancelled and reordered as EFC hulls 2862-2864 on 2 December 1919. Moore continued to build tankers to the same design after the war, producing its yard nos. 160-62, 164, and 166 (S.C.T. Dodd, M.F. Elliott, Thomas H. Wheeler, Gargoyle, and Birkenhead). The yard was later renamed Moore Dry Dock after it again had became primarily a repair yard. Specifications: Design 1041 (S.S. Imlay, EFC Hull 1025): Steel Tanker. Deadweight tons: 10000 designed, 9971 actual. Dimensions: 425' length pp x 57' beam mld. x 33' depth mld., 25.7' draft loaded. Propulsion: 1 screw, 1 Westinghouse turbine, 3 Scotch boilers, 3000 SHP, 11 kts. |

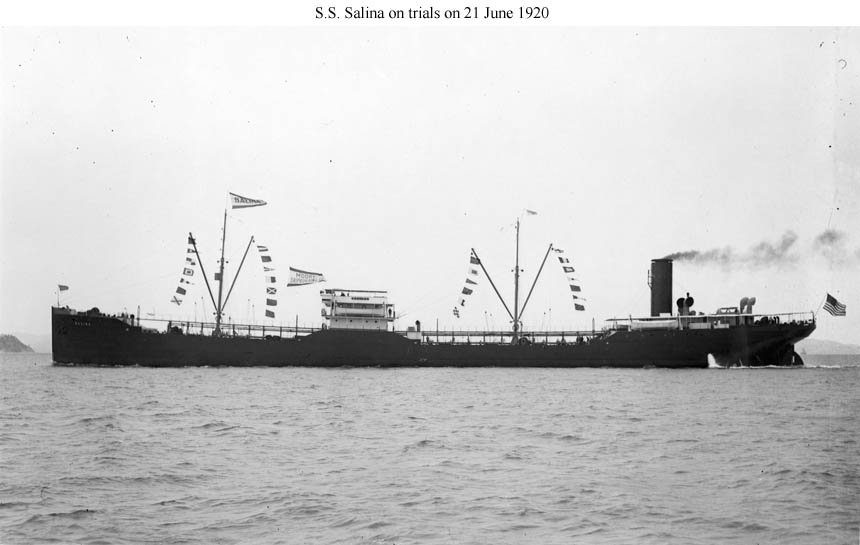

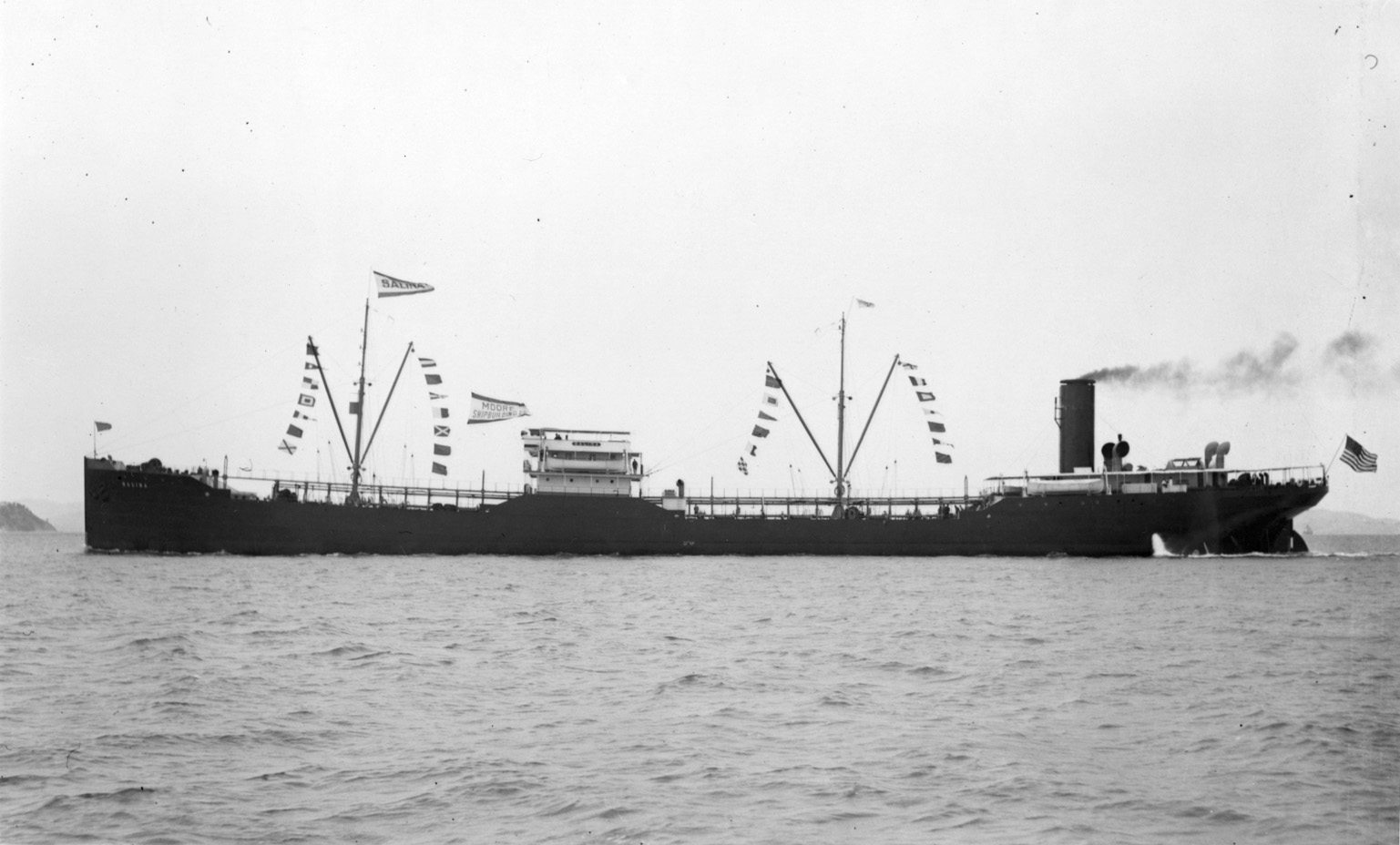

| S.S. Salina (Design 1041, EFC Hull 1029) on trials on 21 June 1920 after completing construction by the Moore Shipbuilding Co., Oakland, Calif. (NARA: RG-32-S) (Click photo to enlarge) |
|

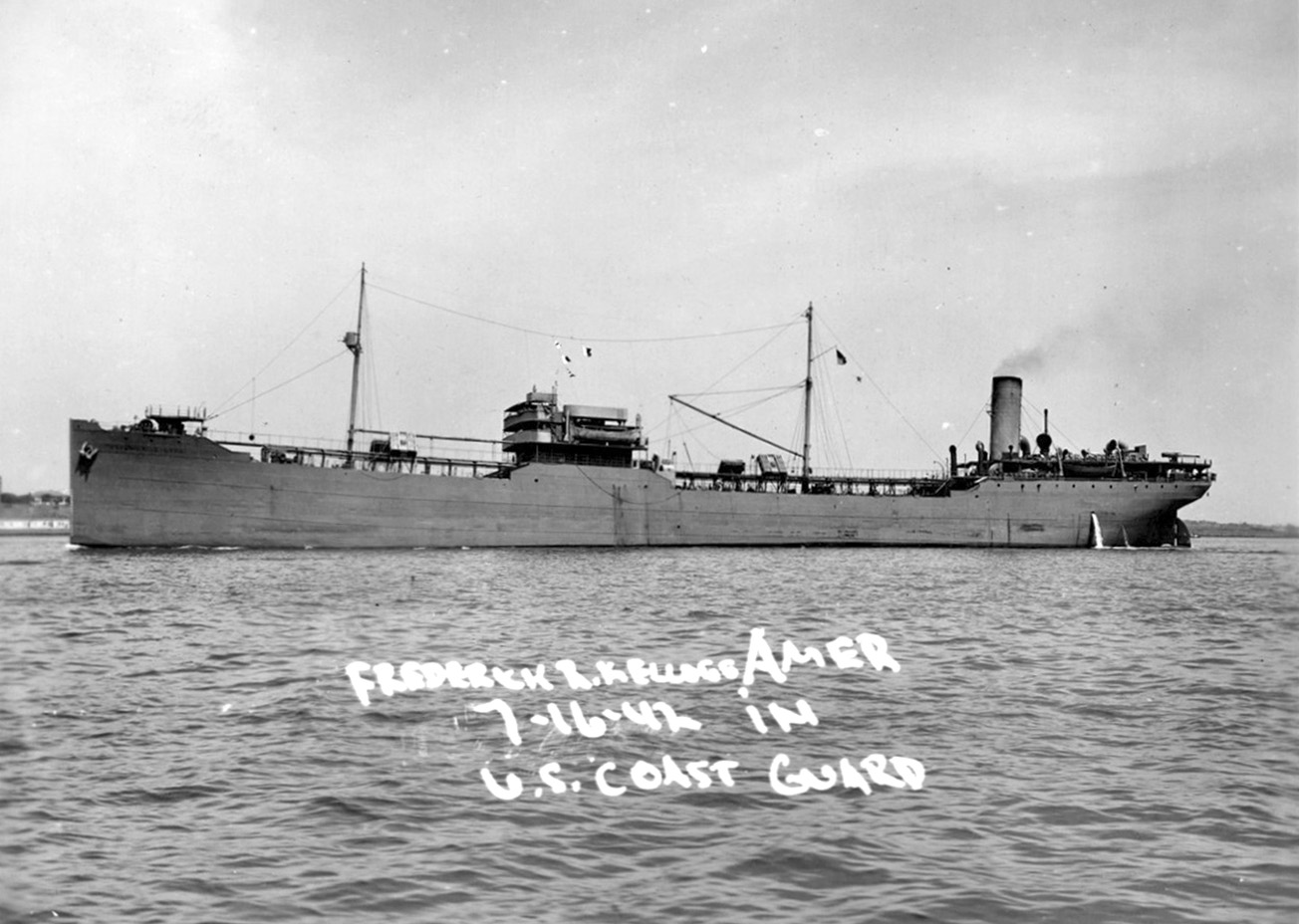

S.S. Frederick R. Kellogg (Design 1041 precursor?) Arriving at an American port on 16 July 1942. Photo No. FredericRKellogg_1748_006 Source: vesselhistory.marad.dot.gov/ShipHistory/Detail/1748 |
 |
|

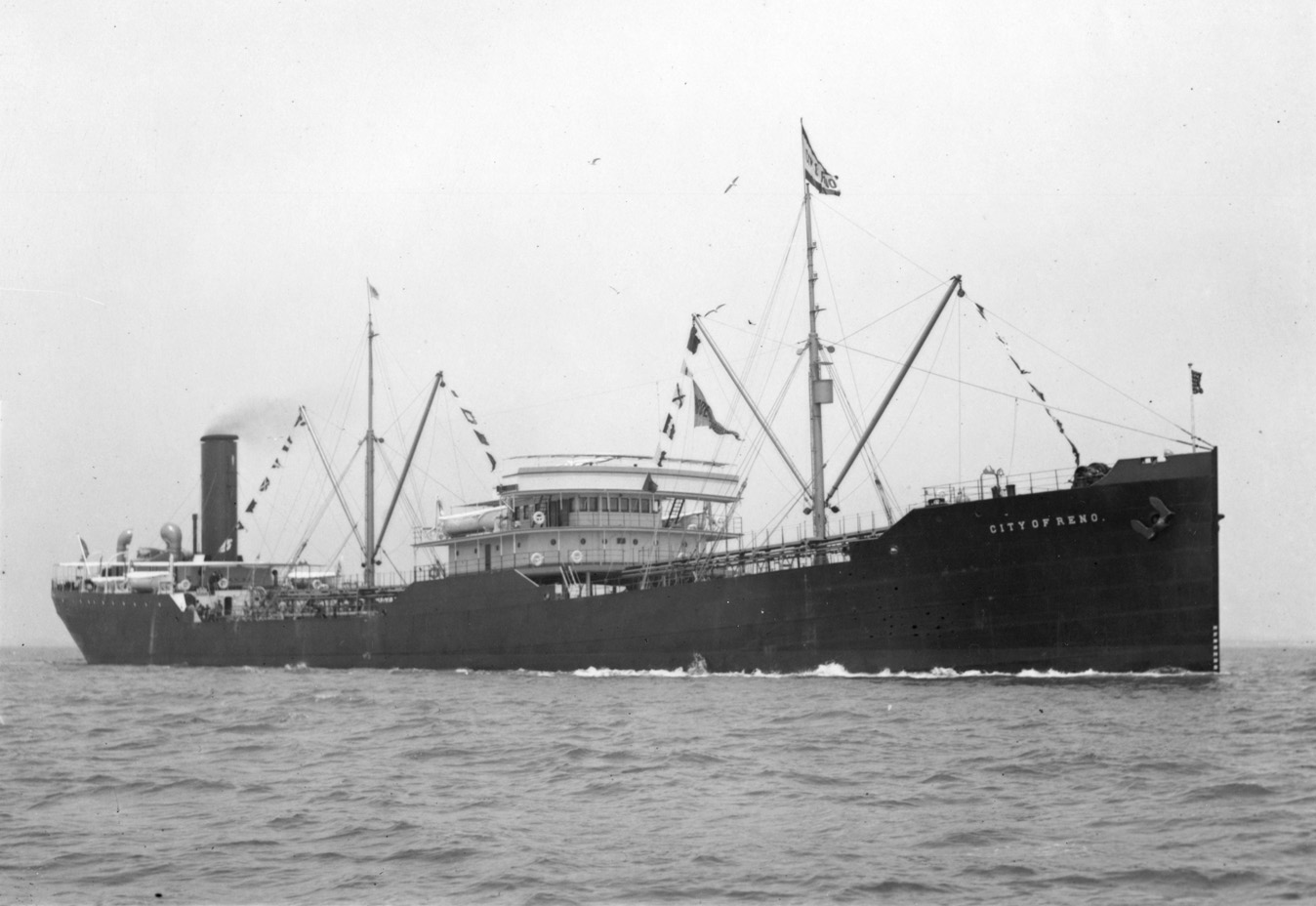

S.S. City of Reno (Design 1041, EFC Hull 1028) On trials on 13 May 1920 after completing construction by the Moore Shipbuilding Co., Oakland, Calif. Photo No. None Source: U.S. National Archives, RG-32-S |
 |
|

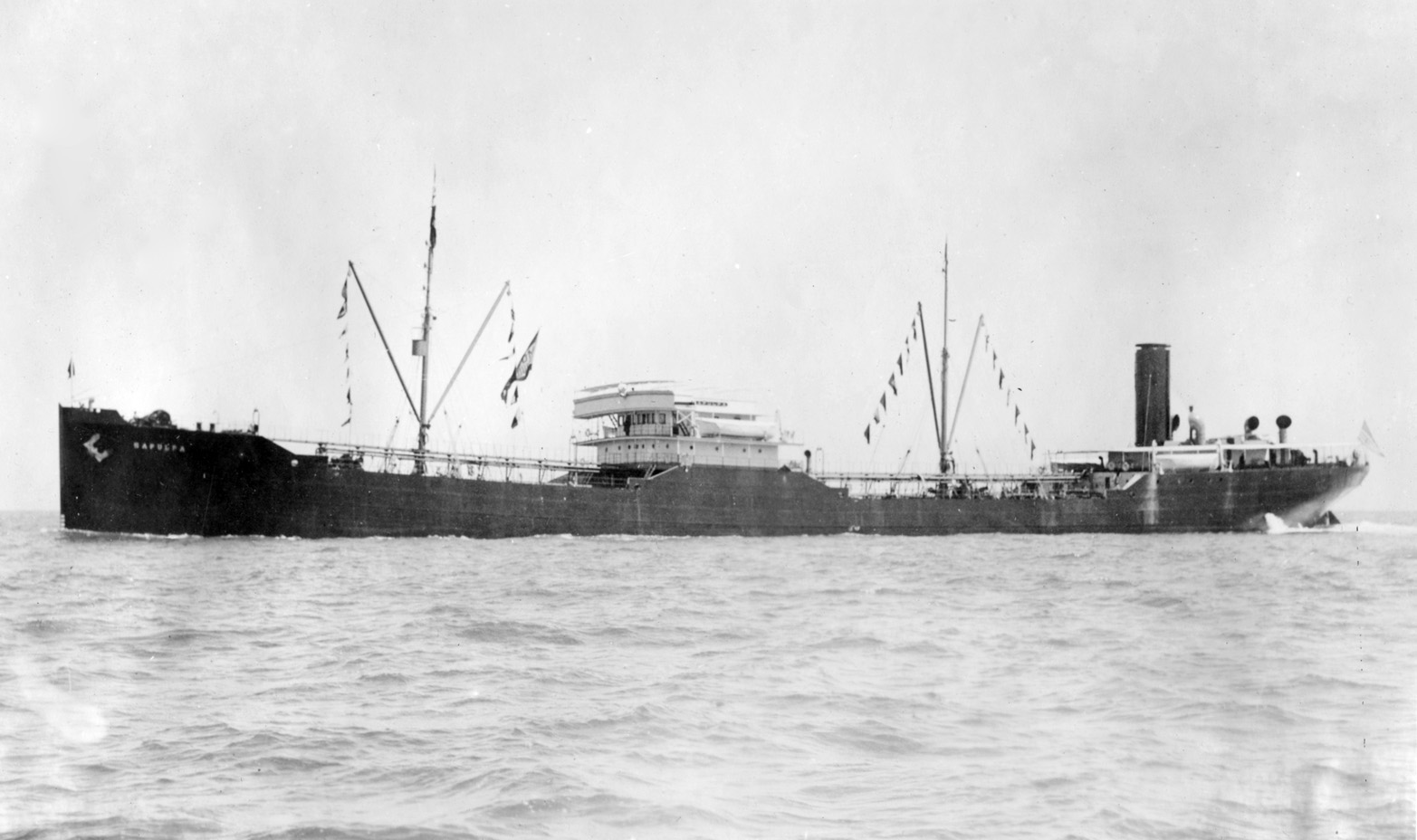

S.S. Sapulpa (Design 1041, EFC Hull 1030) On trials in July 1920 after completing construction by the Moore Shipbuilding Co., Oakland, Calif. Photo No. None Source: U.S. National Archives, RG-19-A-27 |
 |
|

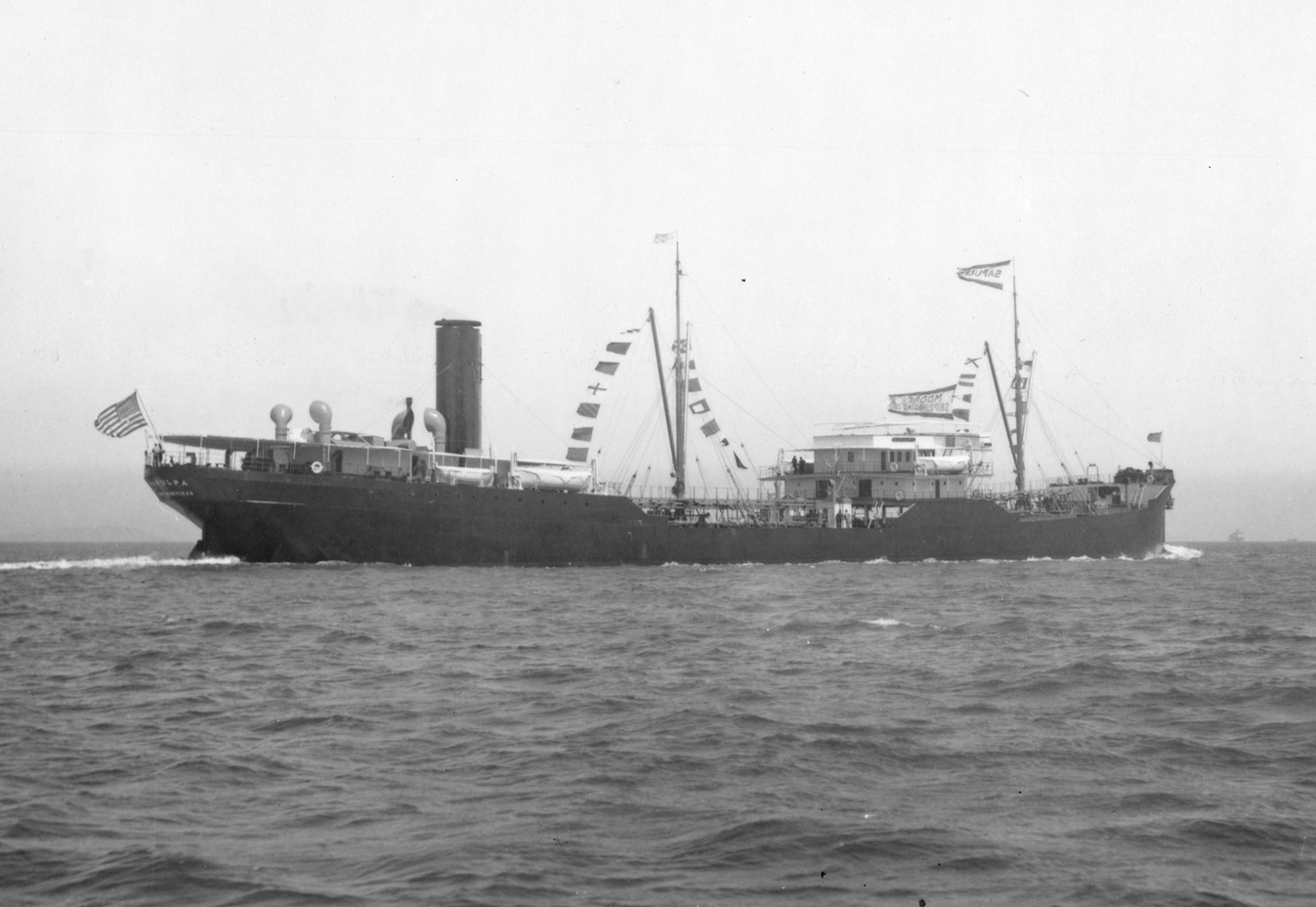

S.S. Sapulpa (Design 1041, EFC Hull 1030) On trials on 26 July 1920 after completing construction by the Moore Shipbuilding Co., Oakland, Calif. Photo No. None Source: U.S. National Archives, RG-32-S |
 |
|

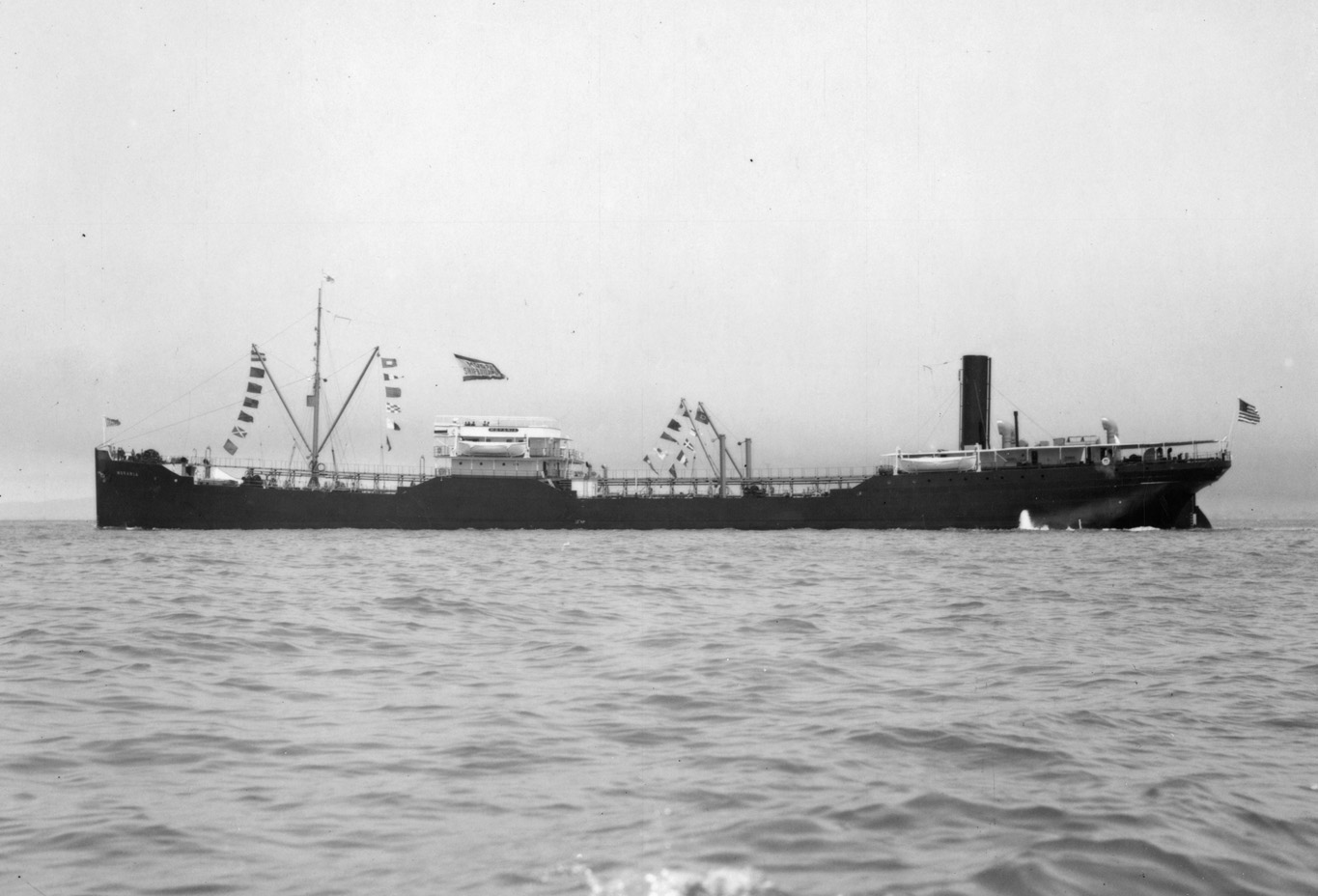

S.S. Mevania (Design 1041, EFC Hull 2228) On trials on 12 August 1920 after completing construction by the Moore Shipbuilding Co., Oakland, Calif. Note that she has two derrick posts amidships instead of a second mast as in the others. Photo No. None Source: U.S. National Archives, RG-32-S |
 |
|

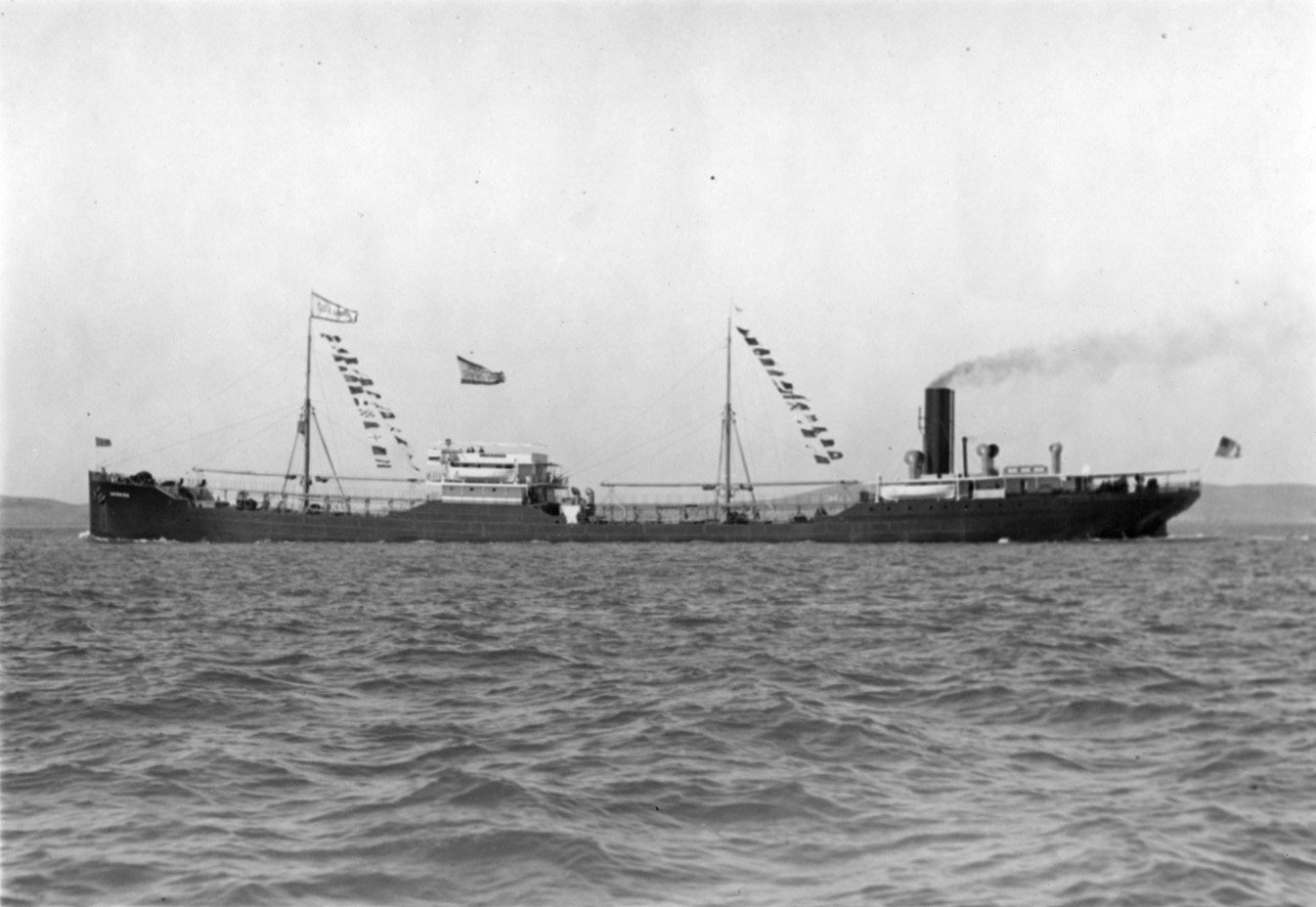

S.S. Lubrico (Design 1041, EFC Hull 2864) On trials on 17 August 1921 after completing construction by the Moore Shipbuilding Co., Oakland, Calif. Photo No. None Source: U.S. National Archives, RG-32-S |
 |
|

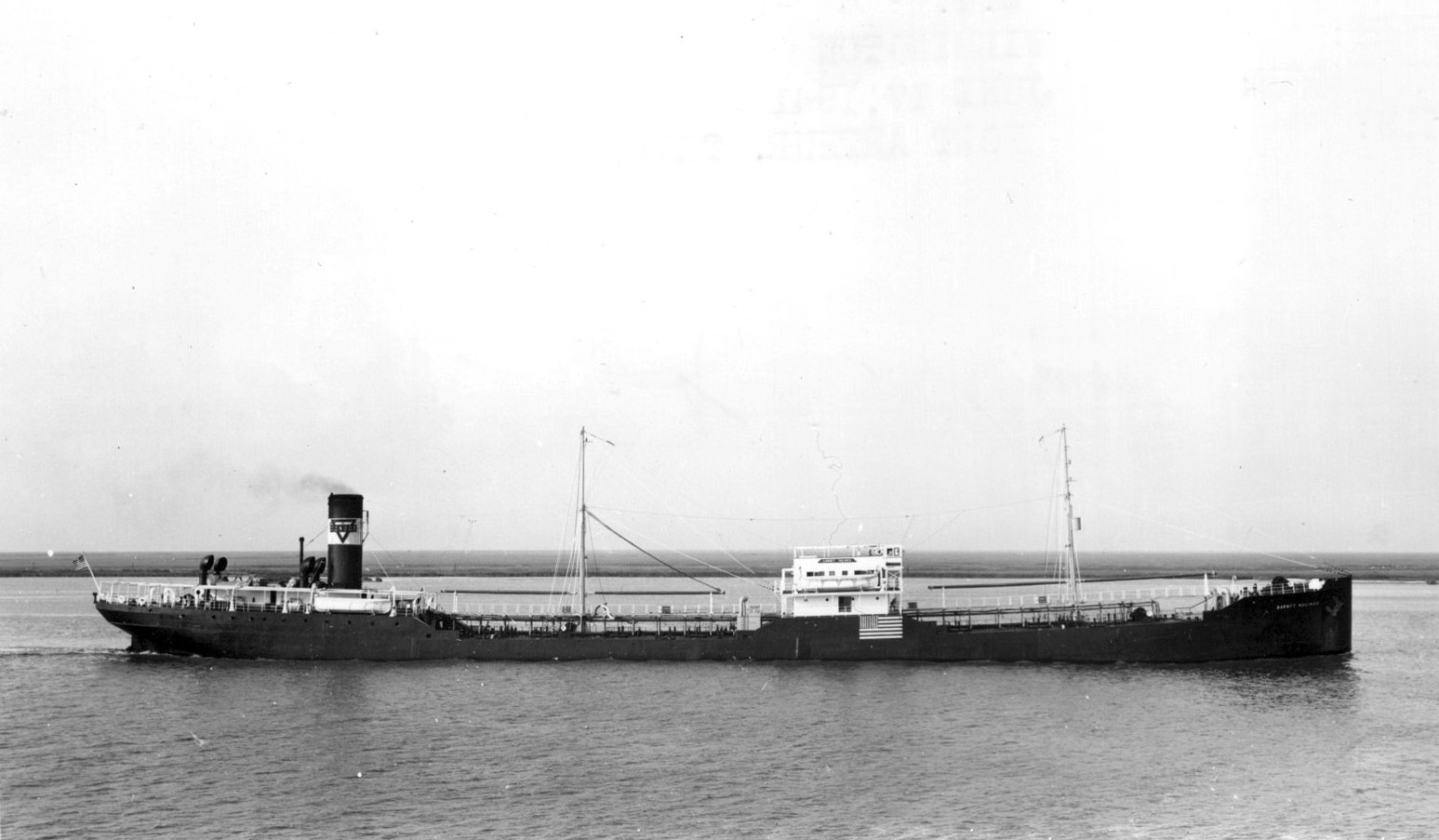

S.S. Garnet Hulings ex Salina (Design 1041, EFC Hull 1029) Probably shown just before World War II. Salina was renamed Garnet Hulings in 1928 and was owned from 1930 to 1947 by the Continental Steamship Co. of Wilmington, Del. The funnel marking appears to say CONOCO. Photo No. GarnetHulings_8207_010 Source: vesselhistory.marad.dot.gov/ShipHistory/Detail/8207 |
 |
|

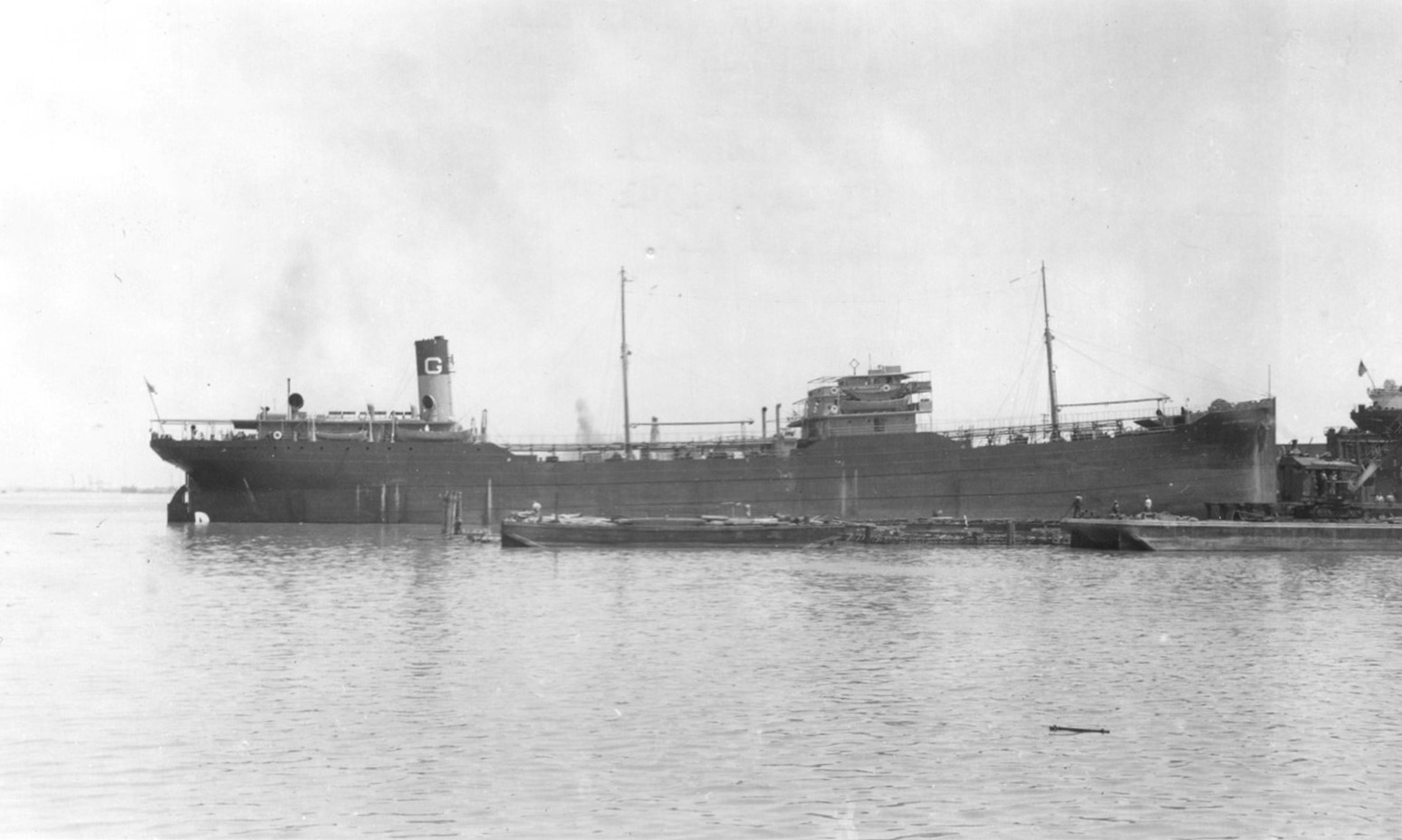

S.S. Gulf of Venezuela ex Miskianza (Design 1041, EFC Hull 1026) Probably shown just before World War II. She had been re-engined with a diesel in 1925 and carries the funnel markings of her owner, the Gulf Oil Co. Photo No. GulfOfVenezuela_8354_010 Source: vesselhistory.marad.dot.gov/ShipHistory/Detail/8354 |
 |
|

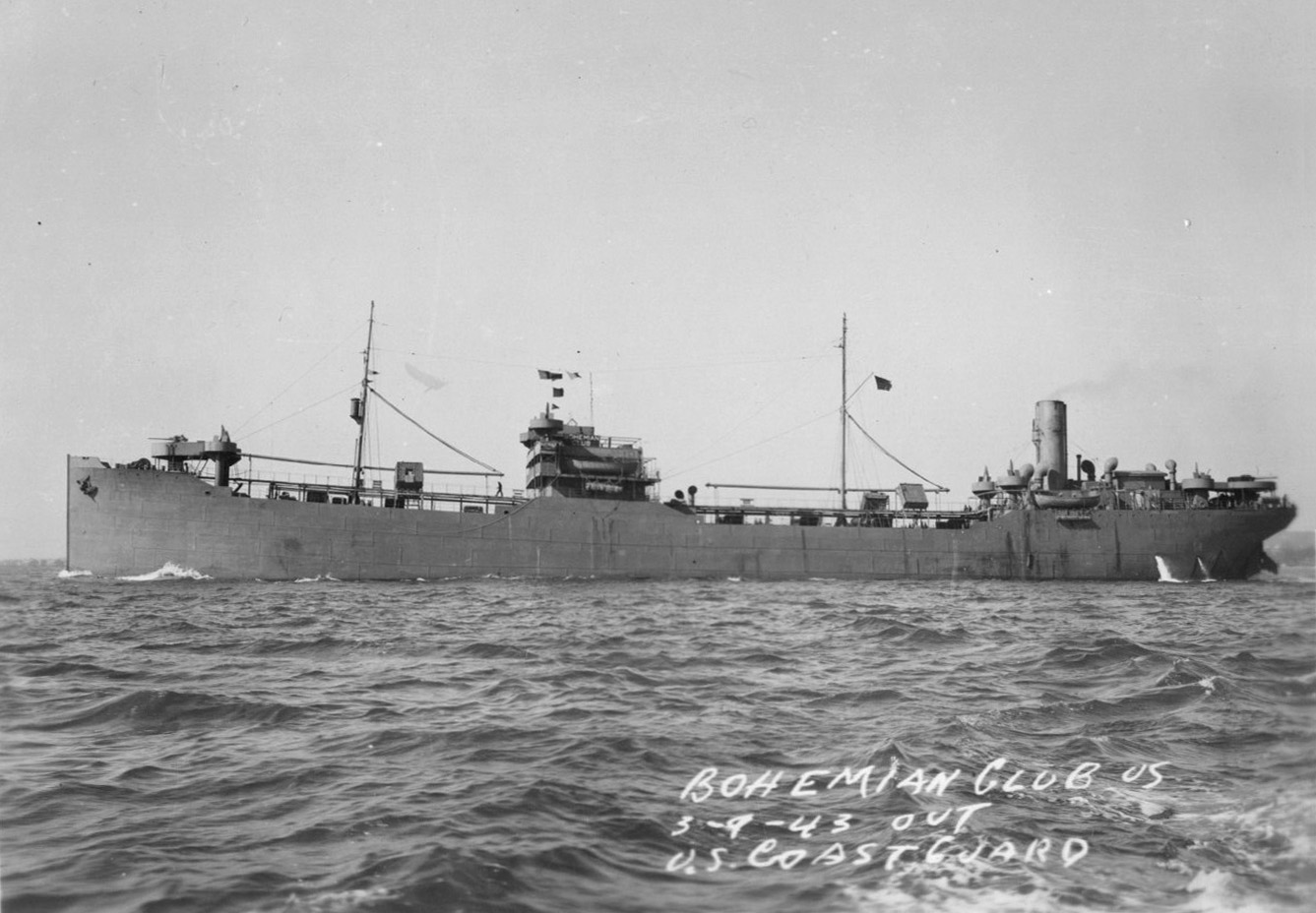

S.S. Bohemian Club (Design 1041, EFC Hull 2862) Departing an American port on 9 March 1943. Photo No. BohemianClub_559_003 Source: vesselhistory.marad.dot.gov/ShipHistory/Detail/559 |
 |
|
S.S. Garnet Hulings ex Salina (Design 1041, EFC Hull 1029) Arriving at an American port on 22 June 1943. Photo No. GarnetHulings_8207_006 Source: vesselhistory.marad.dot.gov/ShipHistory/Detail/8207 |
 |
|

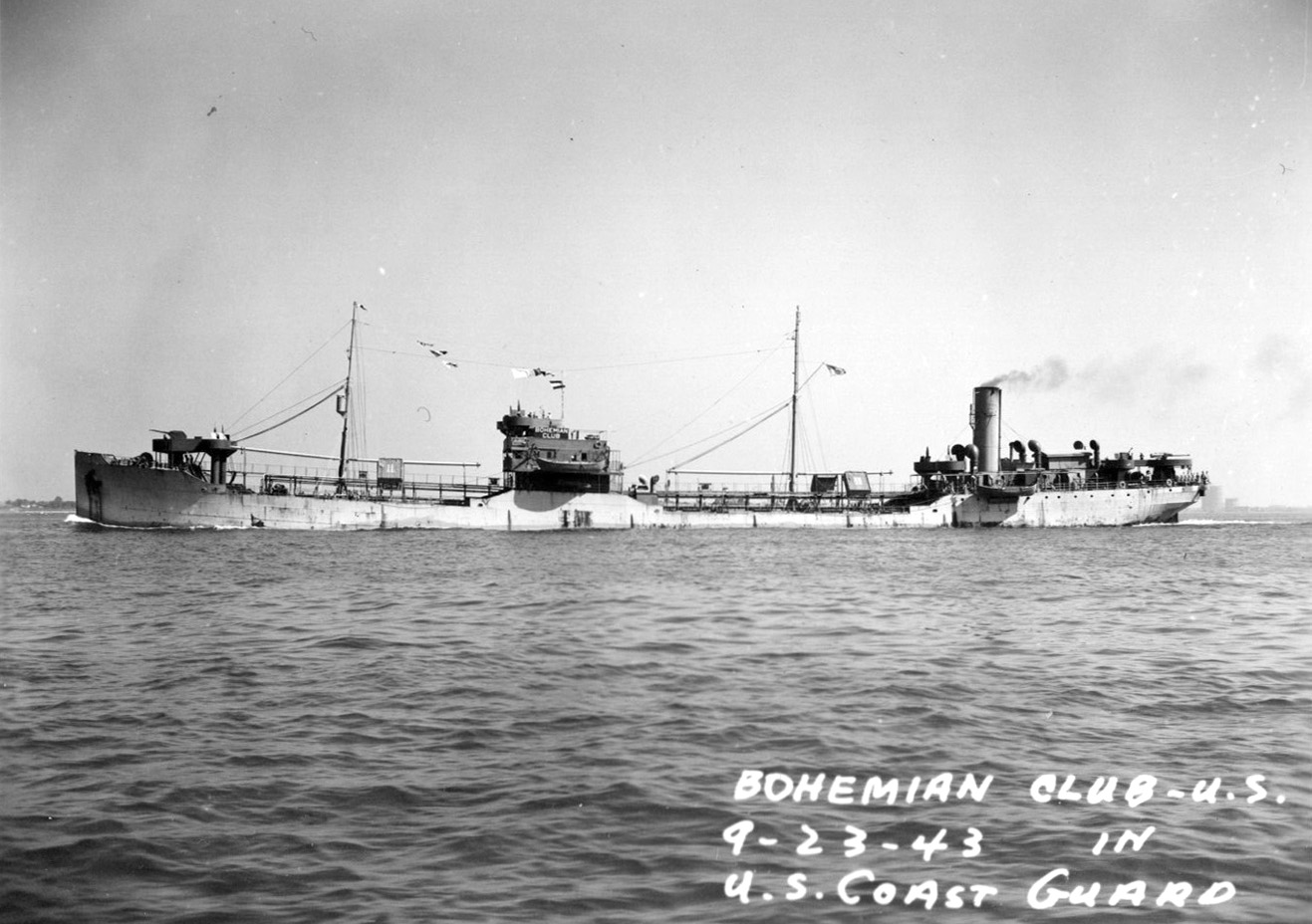

S.S. Bohemian Club (Design 1041, EFC Hull 2862) Arriving at an American port on 23 September 1943. Photo No. BohemianClub_559_012 Source: vesselhistory.marad.dot.gov/ShipHistory/Detail/559 |
 |
|

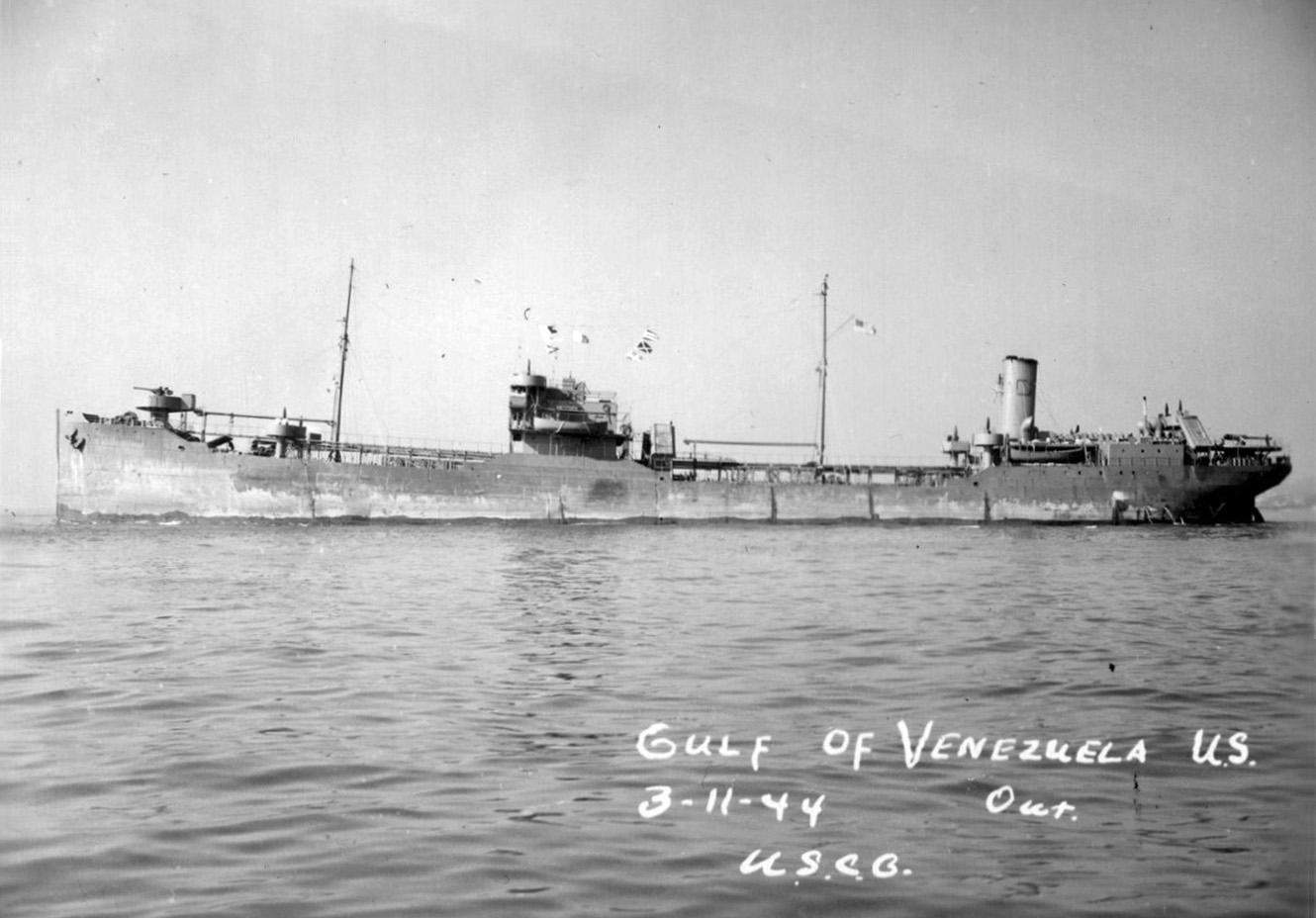

S.S. Gulf of Venezuela ex Miskianza (Design 1041, EFC Hull 1026) Departing an American port on 11 March 1944. The Gulf Oil Co. "G" is still faintly visible on her funnel. Photo No. GulfOfVenezuela_8354_011 Source: vesselhistory.marad.dot.gov/ShipHistory/Detail/8354 |
 |
