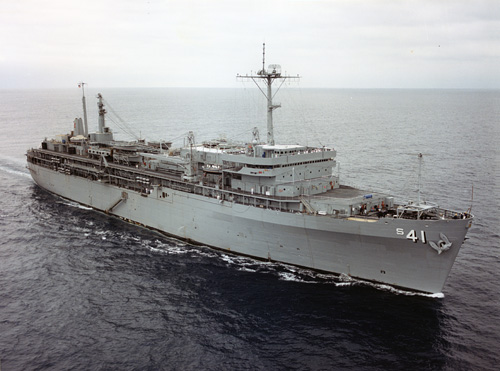

USS McKee (AS 41).
Click on this photograph for links to larger images of this class.

Class: EMORY S LAND (AS 39)
Design: SAIP Project Nos. 737.72 and 746.77
Displacement (tons): 13,911 light, 22,978 full (AS 39)
Dimensions (feet): 644' oa, 620' wl x 85' e/wl x 29' max nav
Armament: 4-20mmS
Accommodations: 83 officers, 1,270 enlisted (AS 39)
Speed (kts.): 20 (18 sustained)
Propulsion (HP): 20,000
Machinery: Steam turbines, 2 boilers (650psi), 1 screw

39EMORY S LAND20 Nov 1974Lockheed SB2 Mar 19764 May 19777 Jul 1979
40FRANK CABLE20 Nov 1974Lockheed SB2 Mar 197614 Jan 197829 Oct 1979
41MCKEE29 Apr 1977Lockheed SB14 Jan 197816 Feb 198015 Aug 1981

ASNameTDecommStrikeDisposalFateMA Sale/Depart
39EMORY S LANDIn Comm. 2021--------
40FRANK CABLEIn Comm. 2021--------
41MCKEE1 Oct 199925 Apr 2006------

Class Notes:
Three more tenders for SSNs were built during the 1970s. Although basically of the AS 36 type they were fitted to support Los Angeles class submarines and were given different SAIC (ex SCB) project numbers. Approved characteristics for Submarine Tender (AS), SAIC Project No. 737.72, were promulgated on 3 December 1971 and as SAIP Project No. 737.72 on 17 Dec 1979. Approved characteristics for an unidentified Submarine Tender (AS), probably SAIP Project No. 746.77, were promulgated on 11 August 1976. The official rendering of the name of AS 41, commemorating Rear Admiral Andrew Irwin McKee, is MCKEE.

Ship Notes:
39EMORY S LANDFY 1972. SAIC Project 737.72 (length oa 644', rest as above). [ICS 23 Mar 1979, in commission in service]. Homeported at Gaeta, Italy, 1999-2007, then at Diego Garcia 2010-2015 and then at Guam. Converted to mixed MSC and USN manning in 2009 during an overhaul at NSY Puget Sound but remained in full commission.
40FRANK CABLEFY 1973. SAIC Project 737.73. [ICS 20 Oct 1979] Homeported at Guam since 2002 or earlier. Converted to mixed MSC and USN manning but remained in full commission.
41MCKEEFY 1977. SAIP Project 746.77 (length oa 649', max nav draft 28', rest as above). 18 years in commission. Retained in layup at NISMF Portsmouth, VA 2017.

Page Notes:
Compiled: 26 Aug 2021
© Stephen S. Roberts, 2021
Sources: DB, Maroon, NVR, PHS
